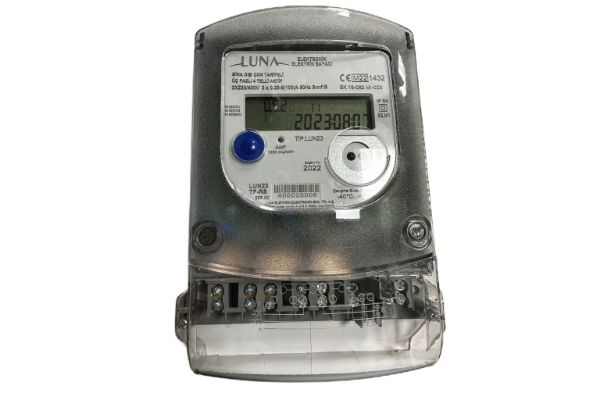

LUNA LUN23 TF-RS AKTİF RS485 HABERLEŞMELİ 100 A TRİFAZE ELEKTRONİK SAYACI(TEK YÖNLÜ)

• Threephase 4 wire meter
• Active-Reactive / Import-Export
• Active Class: B/C Reactive Class:2
• Direct connected
• 5(100)A current
• 3 x 230/400VAC reference voltage
• 1000imp/kWh – 1000imp/kVArh
• -40°C…+70°C temp. range
• Optical port communication

• RS485 communication port
• Anti magnetic (AML)
• Detection and record magnetic interventions
• LCD backlight
• Export energy measurement
• Total Harmonic Distortion (THD) measurement
